BOYA BY-M1 PRO II Condenser Lavalier Lapel Microphone for iPhone Android PC Computer Smartphone DSLR Streaming Youtube Recording

BOYA BY-M1 Pro II is the upgraded, second-generation Pro version of BOYA’s clip-on lavalier series. Designed for content creators, vloggers, interviewers, and educators, it provides 360-degree omnidirectional sound pickup for smartphones, DSLR/mirrorless cameras, tablets, laptops, and audio recorders.

Unlike older generations, the BY-M1 Pro II operates completely battery-free (Plug-and-Play) across all devices. It incorporates specialized features such as a -10dB pad attenuation switch (to prevent audio distortion/clipping in loud environments) and a 3.5mm headphone monitoring jack on the inline control module.

Feature Detail

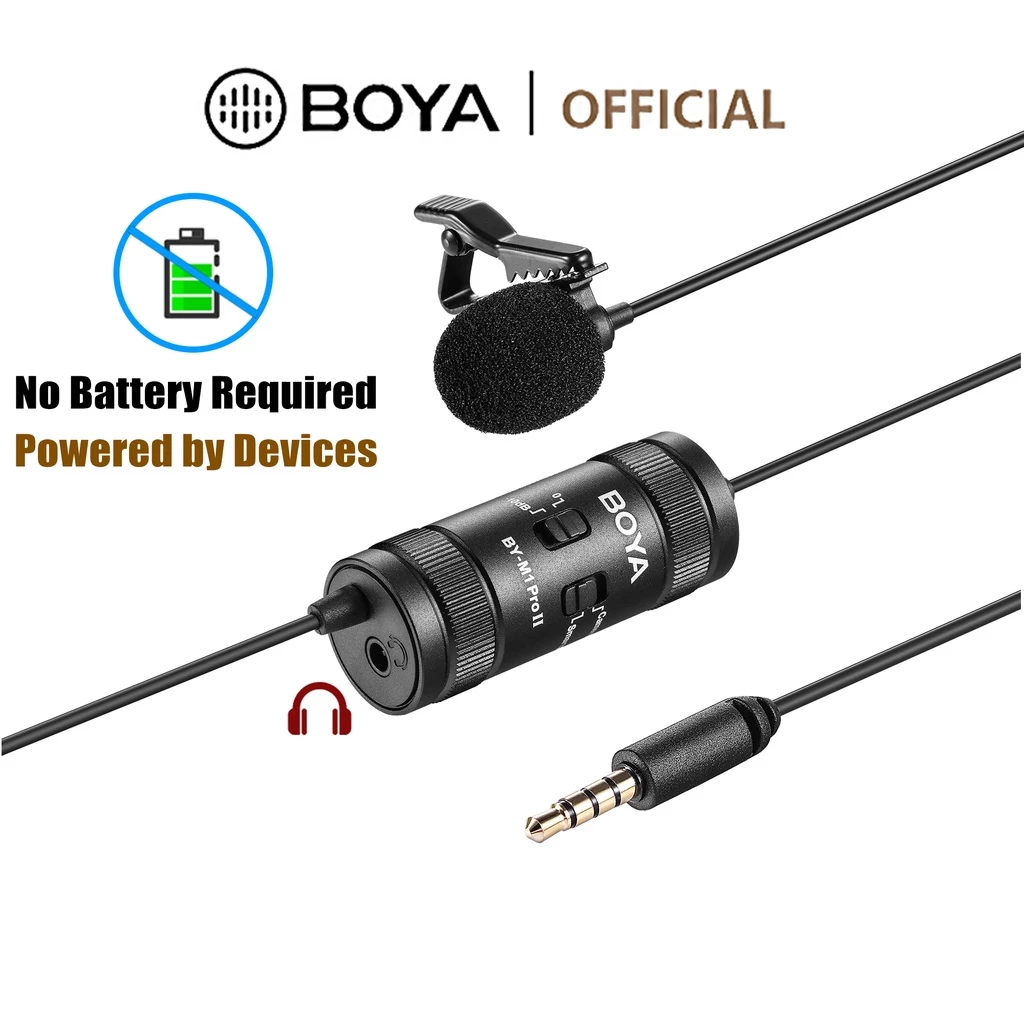

• 100% Battery-Free Plug & Play: Connects directly without requiring LR44 button-cell batteries, drawing power straight from the host device in both Camera and Smartphone modes.

• -10dB Attenuation Pad Switch: An inline switch that instantly drops the input gain by 10 dB to prevent digital clipping when recording loud voices, instruments, or noisy environments.

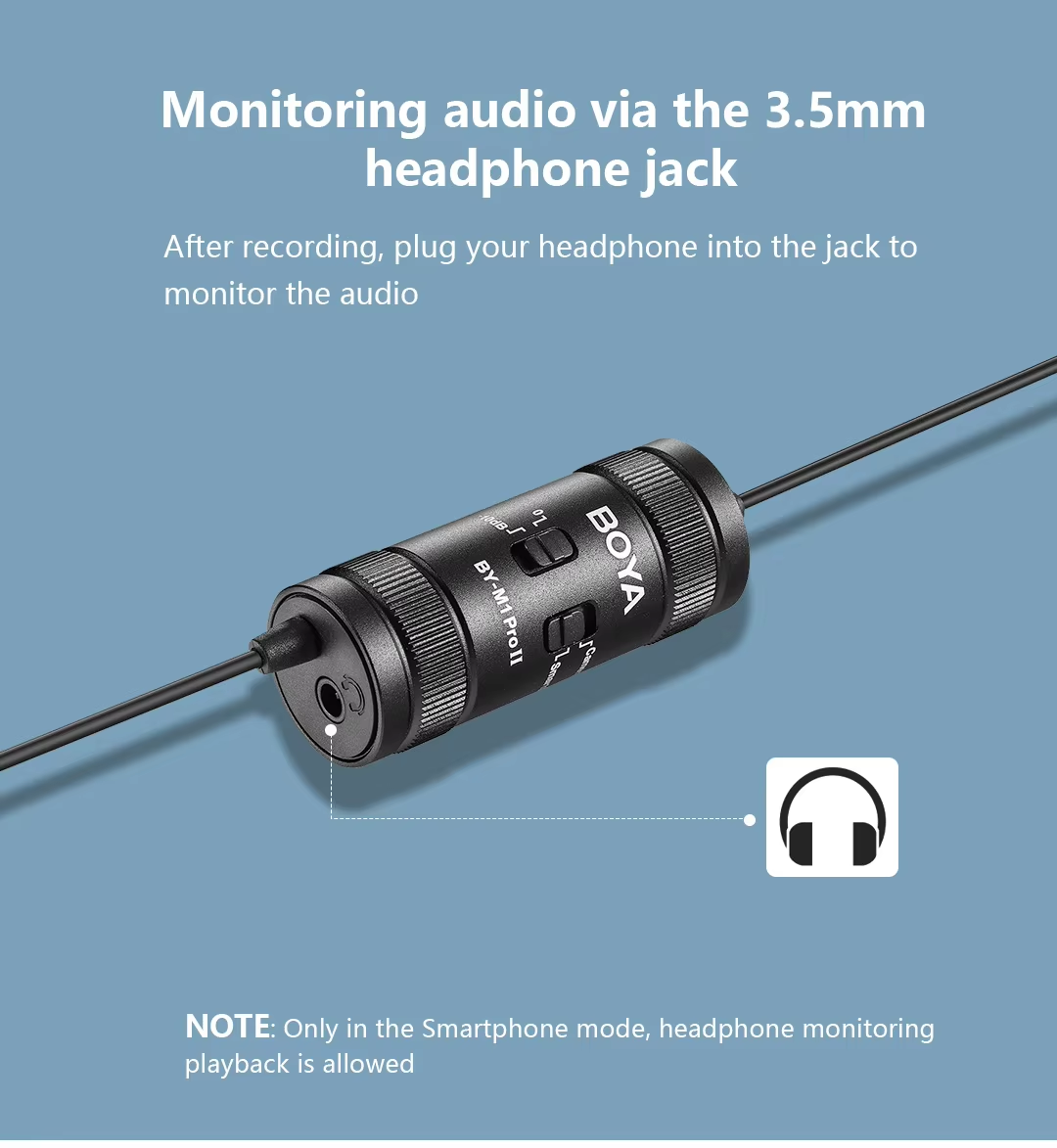

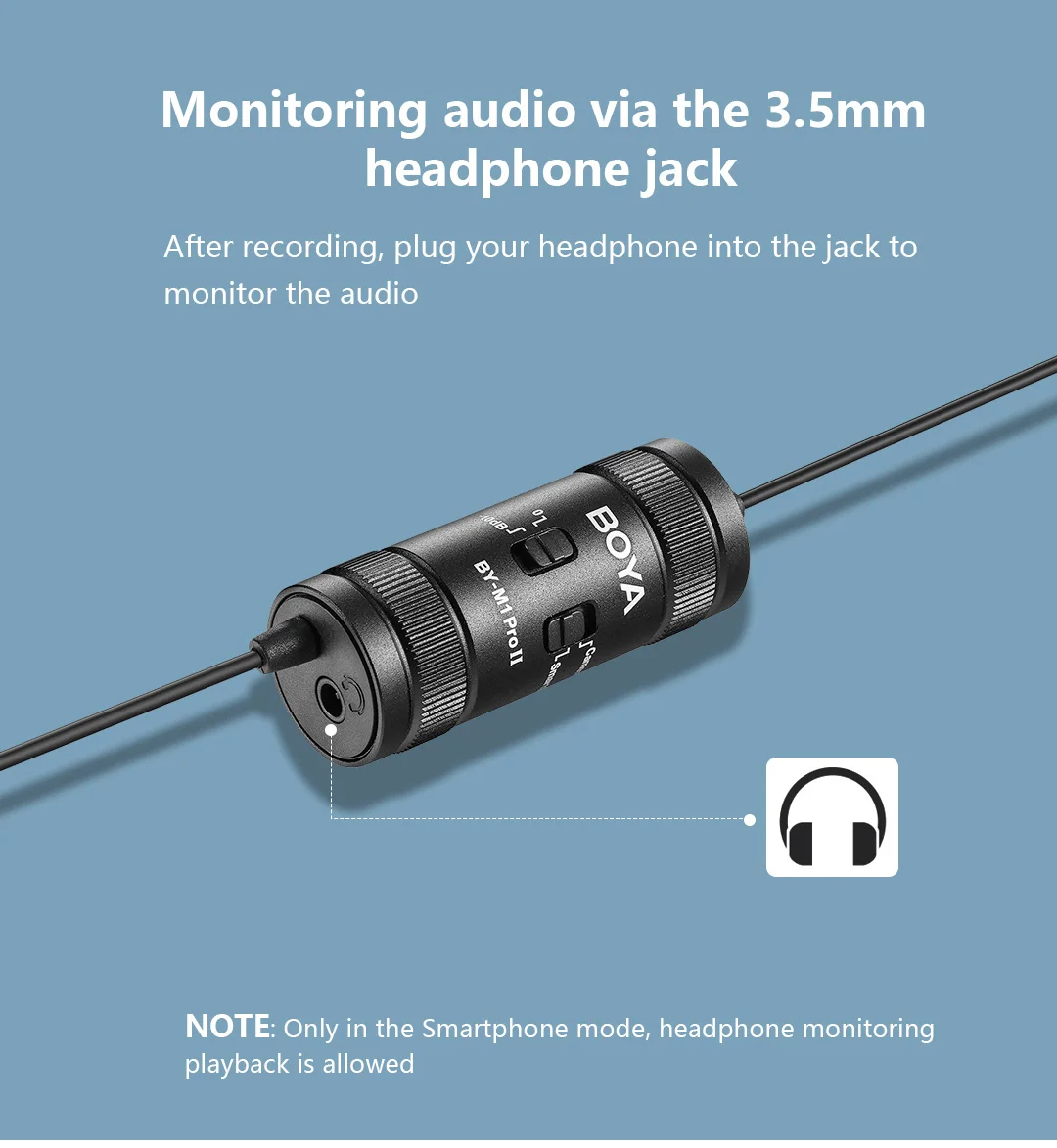

• 3.5mm Real-Time / Playback Monitoring Jack: Features a built-in 3.5mm headphone jack on the control block, allowing you to plug in wired headphones to check audio quality while in Smartphone mode.

• Universal Camera / Smartphone Mode Switch: An inline physical switch that toggles output circuit routing to match standard smartphone TRRS jacks or camera/recorder TRS jacks.

• 6-Meter (19.7ft) Shielded Cable: Generous cable length allows wide video framing, presentation movements, or camera separation without signal interference.

Connectivity Options

Primary Connector

• 3.5mm (1/8″) 4-Pole (TRRS) Gold-Plated Plug

Switch Modes & Compatibility

1. Smartphone Mode:

   • Routes signal for 3.5mm TRRS mobile jacks.

   • Enables the 3.5mm headphone jack on the module for monitoring.

   • Compatible with: Smartphones, tablets, laptops, and PCs (with combo mic/headphone jacks).

2. Camera Mode:

   • Routes output impedance for standard camera TRS inputs.

   • Compatible with: DSLR cameras, mirrorless cameras, camcorders, field audio recorders, and external mixers.

(Note: Modern iOS and Android phones lacking a 3.5mm port require a standard USB-C to 3.5mm or Lightning to 3.5mm adapter).

Technical Specifications

Best Use For

• Loud-Environment & Live Event Content: The -10dB attenuation switch makes it ideal for concerts, sports events, shouting vocals, or loud streets where standard lavaliers clip or distort.

• Mobile Vlogging & Streaming: The 3.5mm monitoring port lets creators instantly verify audio quality on smartphones.

• Interviews & Speeches: Long 6m cable provides distance flexibility for medium/wide camera shots.

Why Recommended & Suitable

1. No Battery Failure Risks: Upgraded from earlier models to operate on 100% plug-in power—eliminating the worry of dead LR44 batteries during crucial recordings.

2. Clipping Prevention (-10dB Pad): One of the few budget wired lavalier mics equipped with an inline hardware gain pad switch, giving you an immediate safeguard against distorted audio.

3. Headphone Monitoring: Provides an easy way to check audio playback/monitoring directly on mobile devices without unplugging the mic.

4. Improved Low-Noise Capsule: Higher Signal-to-Noise Ratio (>78 dB) delivers a lower noise floor and clearer voice reproduction compared to standard budget lavaliers
