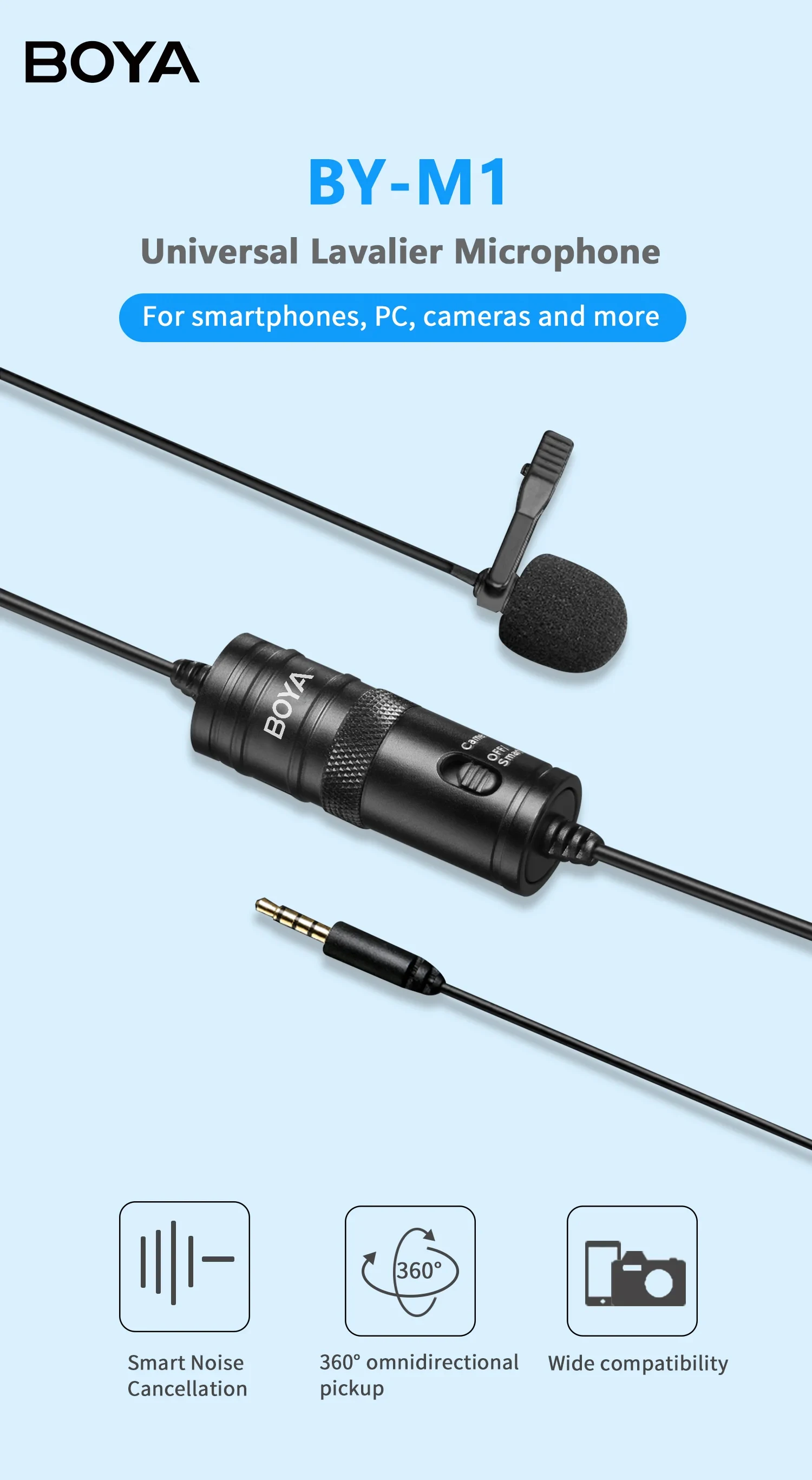

BOYA BY-M1 Lavaliere Microphone 3.5mm Condenser Microphone For Phones Cameras,

BOYA BY-M1 is an entry-level universal clip-on lavalier condenser microphone. It is widely used by content creators, vloggers, interviewers, educators, and journalists to capture audio directly onto smartphones, DSLR cameras, audio recorders, laptops, and PCs.

Featuring an integrated 6-meter (20-foot) cable, an in-line power module, and a 3.5mm TRRS gold-plated connector, the BY-M1 offers clear voice pickup across a wide range of recording environments without requiring complex setup.

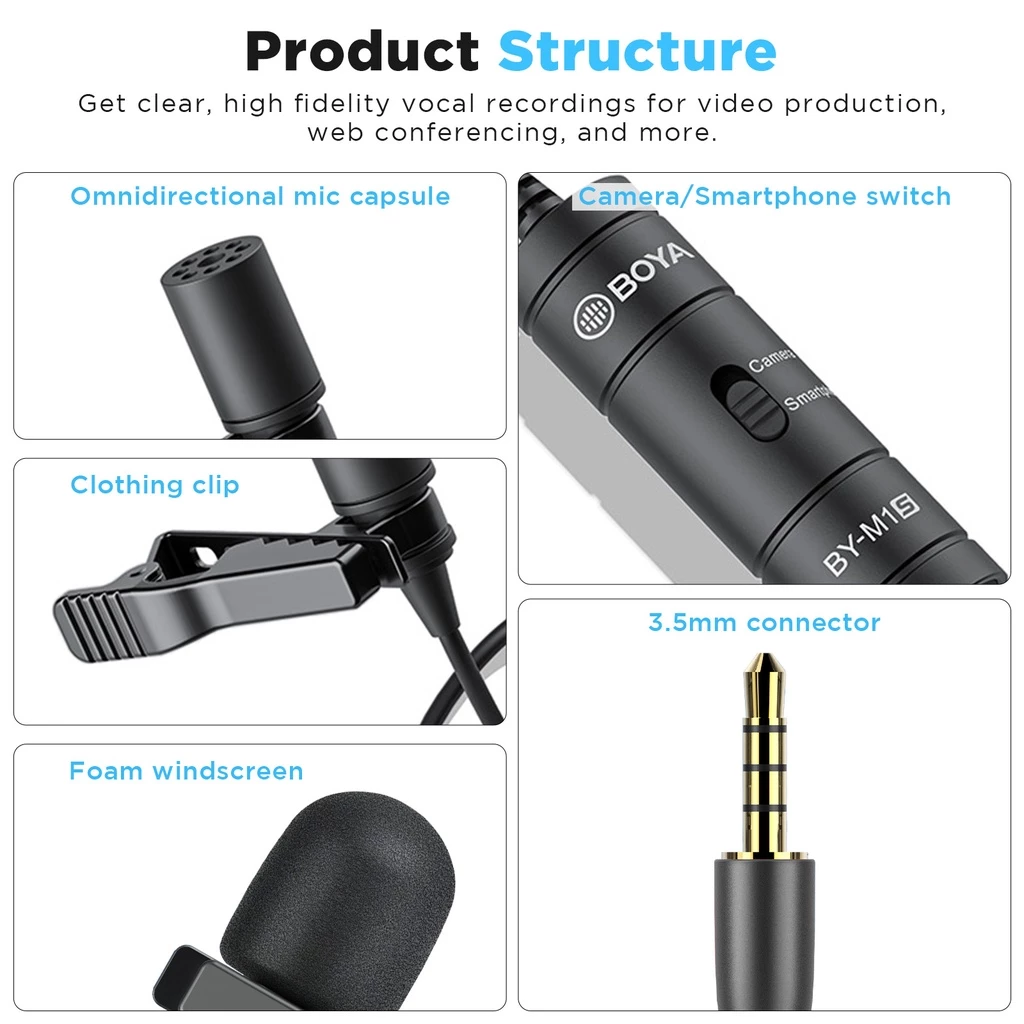

Feature Detail

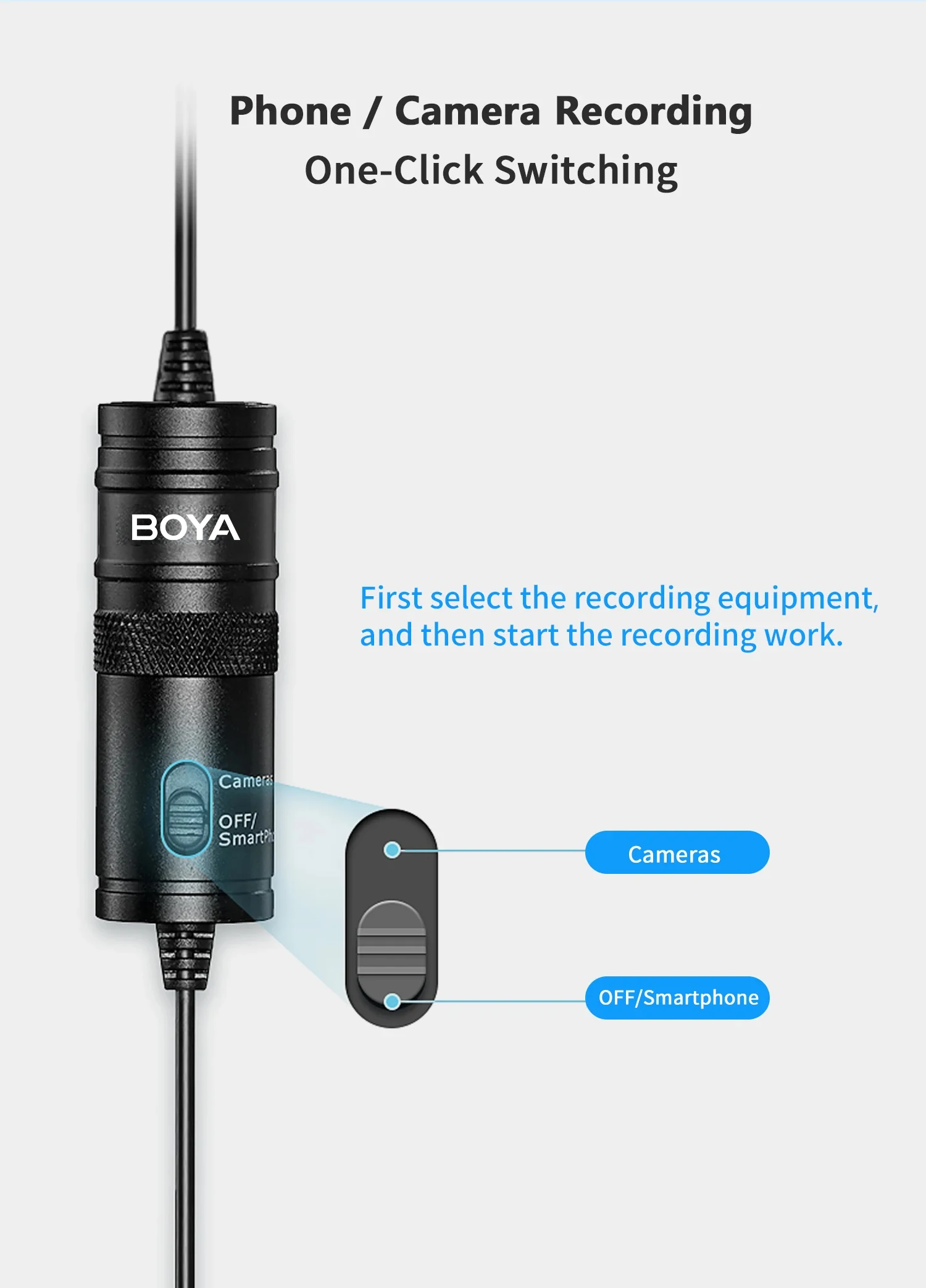

• Universal 2-in-1 Switch: Features an in-line control module with a physical toggle switch to alternate between “OFF/Smartphone Mode” (unpowered) and “Camera / ON Mode” (battery-powered).

• 360° Omnidirectional Audio Capture: Picks up sound evenly from all directions around the capsule, allowing for steady voice levels even if the speaker moves their head.

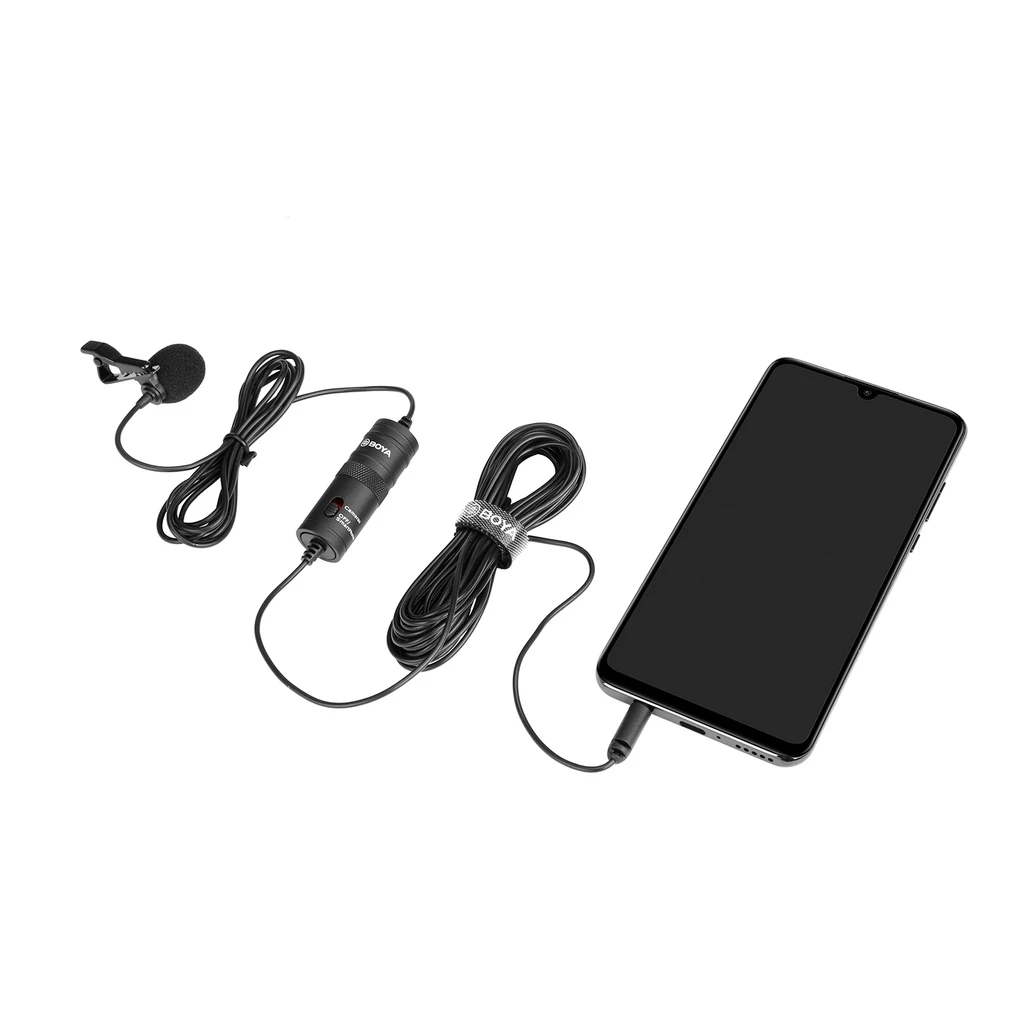

• Ultra-Long 6-Meter (20ft) Integrated Cable: Gives users complete freedom of movement when filming interviews or wide-angle camera shots.

• Low Handling Noise: Designed with an insulated housing structure to minimize unwanted rustling or friction sounds from clothing.

• Plug-and-Play Operation: Requires zero software drivers; functions instantly upon plugging into compatible 3.5mm headphone/mic combo jacks.

Connectivity Options

Primary Output Connector

• 3.5mm (1/8″) 4-Pole (TRRS) Gold-Plated Plug: Connects directly into smartphones, tablets, laptops, and PCs.

System Modes & Compatibility

1. OFF / Smartphone Mode:

   • Uses passive power directly from the connected device’s audio jack (no battery required).

   • Compatible with: Mobile phones, tablets, single-port audio laptops, and PCs.

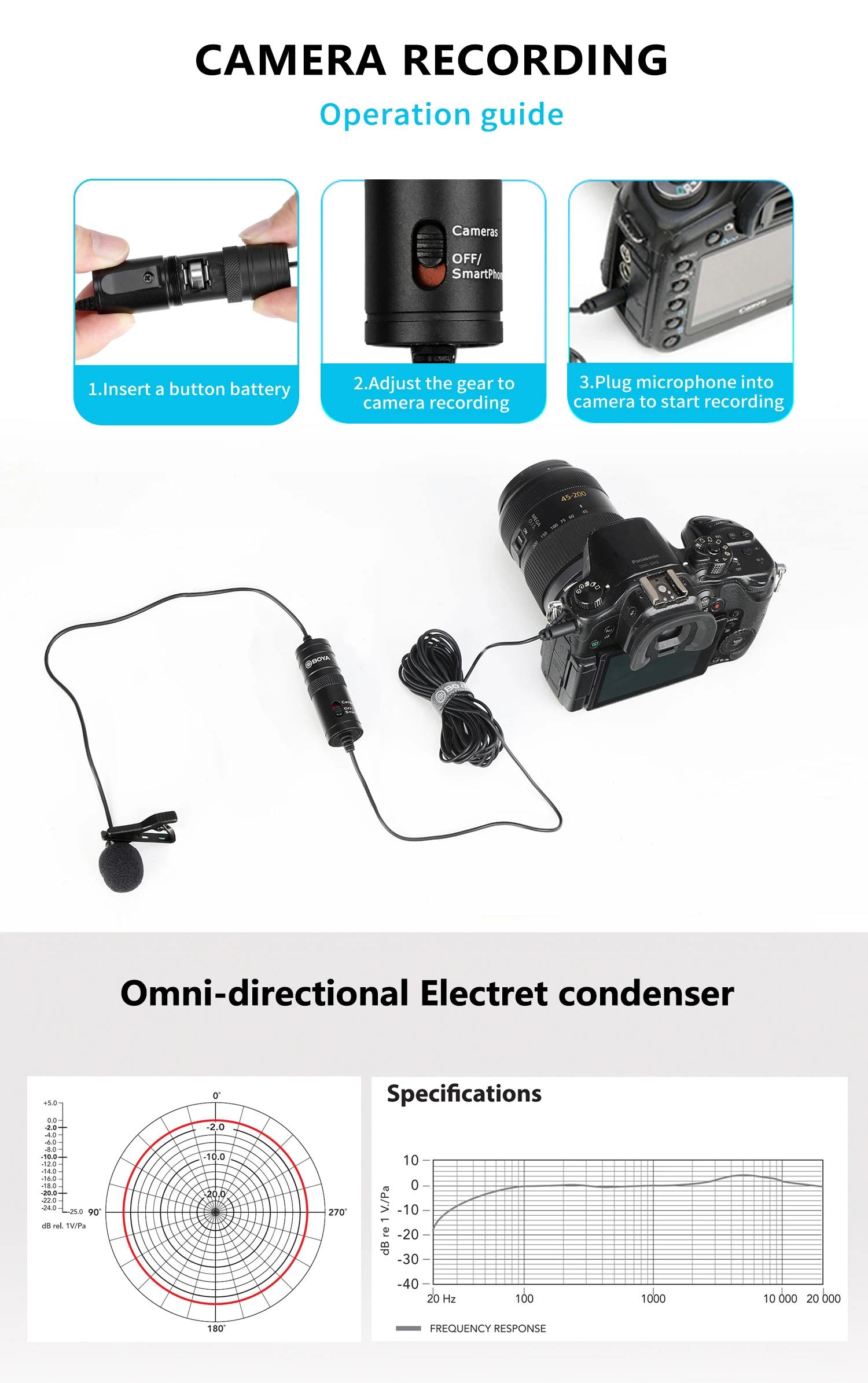

2. Camera / ON Mode:

   • Uses internal power provided by the included LR44 button-cell battery.

   • Compatible with: DSLR cameras, mirrorless cameras, camcorders, dedicated audio recorders, and amplifiers.

(Note: For modern smartphones without a 3.5mm headphone port, a Lightning-to-3.5mm or USB-C-to-3.5mm adapter is required).

Technical Specifications

What Comes in the Box?

• 1x BOYA BY-M1 Lavalier Microphone with 6m Cable

• 1x Lapel/Clothing Clip

• 1x Foam Windscreen

• 1x LR44 Button Cell Battery

• 1x 1/4″ (6.35mm) Audio Adapter (TRS)

• 1x Carrying Pouch

• 1x User Manual

Why Is It Reliable?

1. Dual-Mode Versatility: Works effortlessly across both consumer mobile devices and professional camera gear via a single toggle switch.

2. Gold-Plated Connector: The gold-plated 3.5mm TRRS jack resists corrosion and prevents electrical noise interference or static during movement.

3. No Battery Needed for Smartphones: Eliminates the risk of dead batteries during phone recordings—battery power is only consumed when switched to “Camera” mode.

4. Extra Cable Length Built-in: The 6-meter cable eliminates the need for extension cables, which often introduce signal noise or loose connections.
